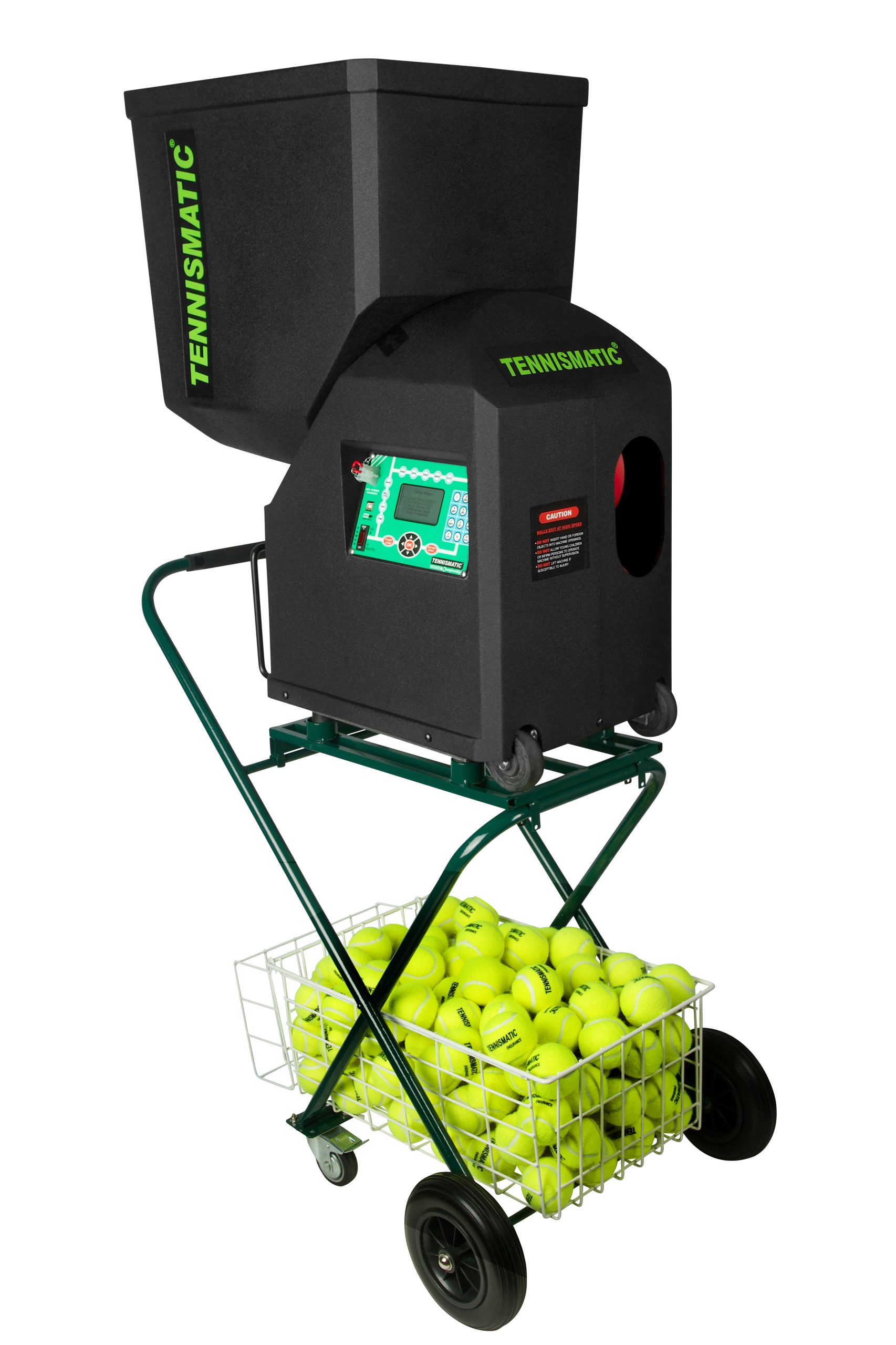

Models T201, T202, T203
For Entry, Intermediate and advanced Players
Australian Made and Owned
-
- Playing Position
-
- On Serve Stand (Serve Stand Optional)
-
- Storage Position
-
- Transport position
-
- Large LCD Screen with Back Light
-
- Wireless Navigational Remote

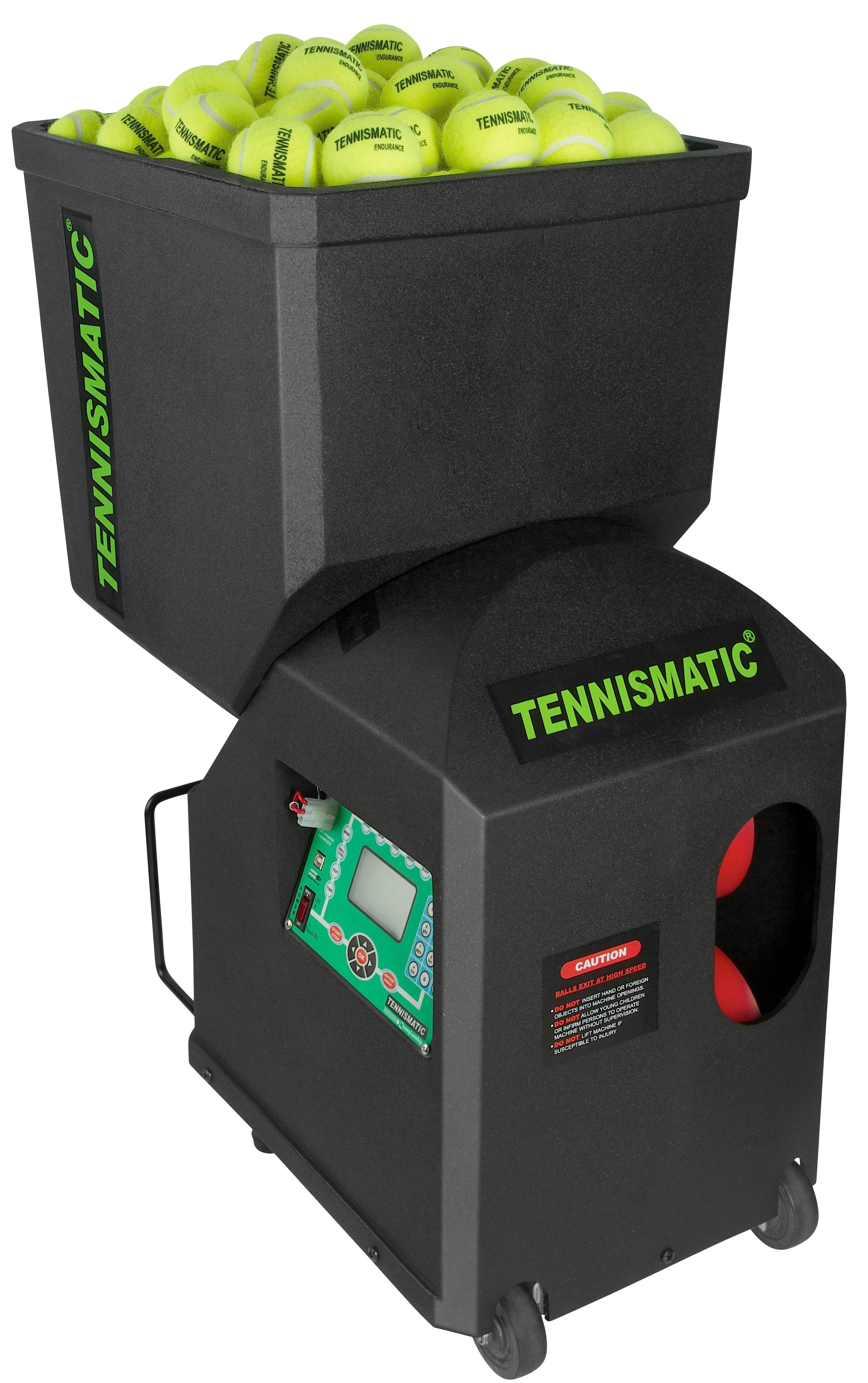

T200 Championship Series Features:
Model T201
- Variable speed control (40Km/h – 110Km/h)
- Variable top/ bottom spin control
- Electronic elevation (Ground stroke to lob)
- Variable random speed oscillation control
- Variable ball feed control
- Multi navigational wireless remote control
- Programmable ball delivery buzzer warning
- Real time clock for play/hire scheduling
- Single ball delivery
- 24 favourite memory locations
- Double or single court selection
- Stand-By mode memory
- Large LCD display with back-light. (Auto, OFF, ON)
- Programmable audible warning for ball delivery
- Battery level indicator
- Password protected
- Horizontal Sweep with Wide, Narrow 2-Line Drill, 3 Line Drill, Smooth Random, 5 Position Sequential and 5 position Mixed Oscillation
- 5 Vertical Oscillation positions with automatic speed adjustment
- Ball type selection – New, Average, Old
- Automatic battery charger
- Ball De-jammer
- Ball Hopper Sand Filter
- Ball capacity – 300
- Power Option: DC – AC Mains – DC & AC Mains
- Weight from 20Kg – 23.5Kg
Model T202
With all the advanced features of T201 above plus:
- 24 factory-set drills for single or double court. Each drill is programmed with up to 16 shot rallies. In single court you can have up to 56 court locations and up to 66 court locations for double court.
Model: T203
With all the advanced features of T201, T202 plus:
- 24 programmable custom drills. Each drill can be programmed with up to 16 shot rallies. The variations of the 16 shots drill are infinite. In single court you can have up to 56 court locations and up to 66 court locations for double court.
- Drill simulation for ease of selection.
Time Management

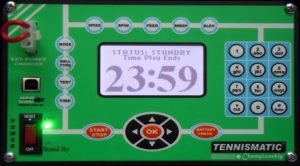

This unique feature allows you to set the game duration on the control panel. After the set period is finished, the machine will stop, the buzzer will sound, and you will be asked to stop playing or to continue playing. If you wish to hire the machine out for a few days, simply program the hiring period in. After the hiring period has expired, the tennis ball machine will become inactive, and you will be asked to enter your PIN to reactivate the machine again.
Password Protection
The T200 Championship Series Ball Machine can be password protected so that only you can use it at certain times. When you are not using the machine for an extended period of time, or you want to hire out the ball machine to other tennis players, simply program a time period in the machine that you would like the it to be in operation, and once that period expires, the machine will become inactive. After the machine has become inactive, and before the machine can be used, you will be asked to enter your PIN numbers .
Favorites Routines
Save your favourite drills into memory for later use is as easy as pressing a few buttons on the Control Panel, or on the wireless Remote.
With 24 memory slots, so you won’t have to share your favourite routines drills with your other people, simply save the current setup parameters into an empty memory slot that is not highlighted on the LCD screen. Loading and deleting these favorites is also easy.
If you can’t remember what’s in your favorites, the LCD screen will display all the parameters for the memory slot that you selected for play.

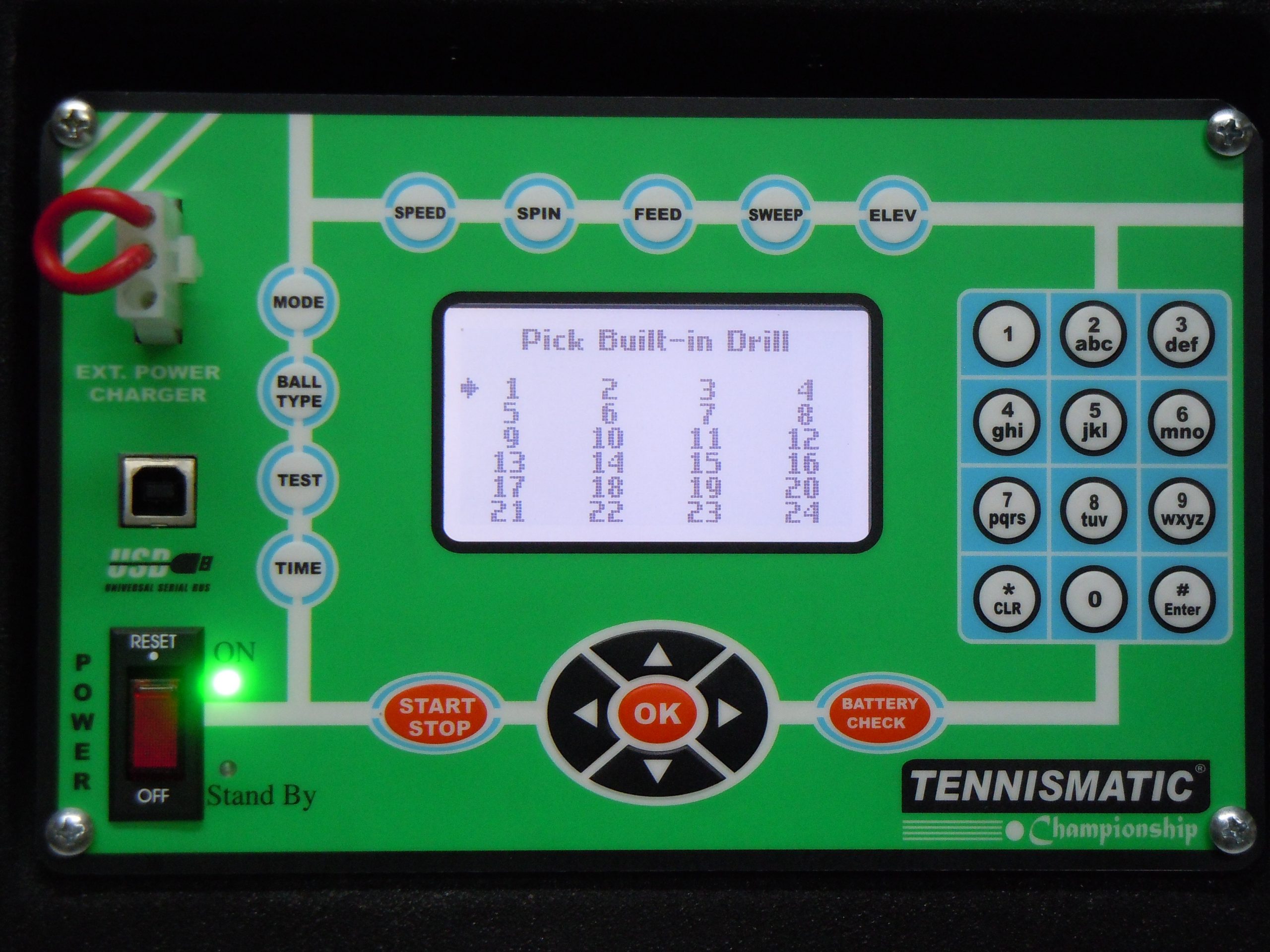

Factory Set Drills -Applicable to Model: T202, T203

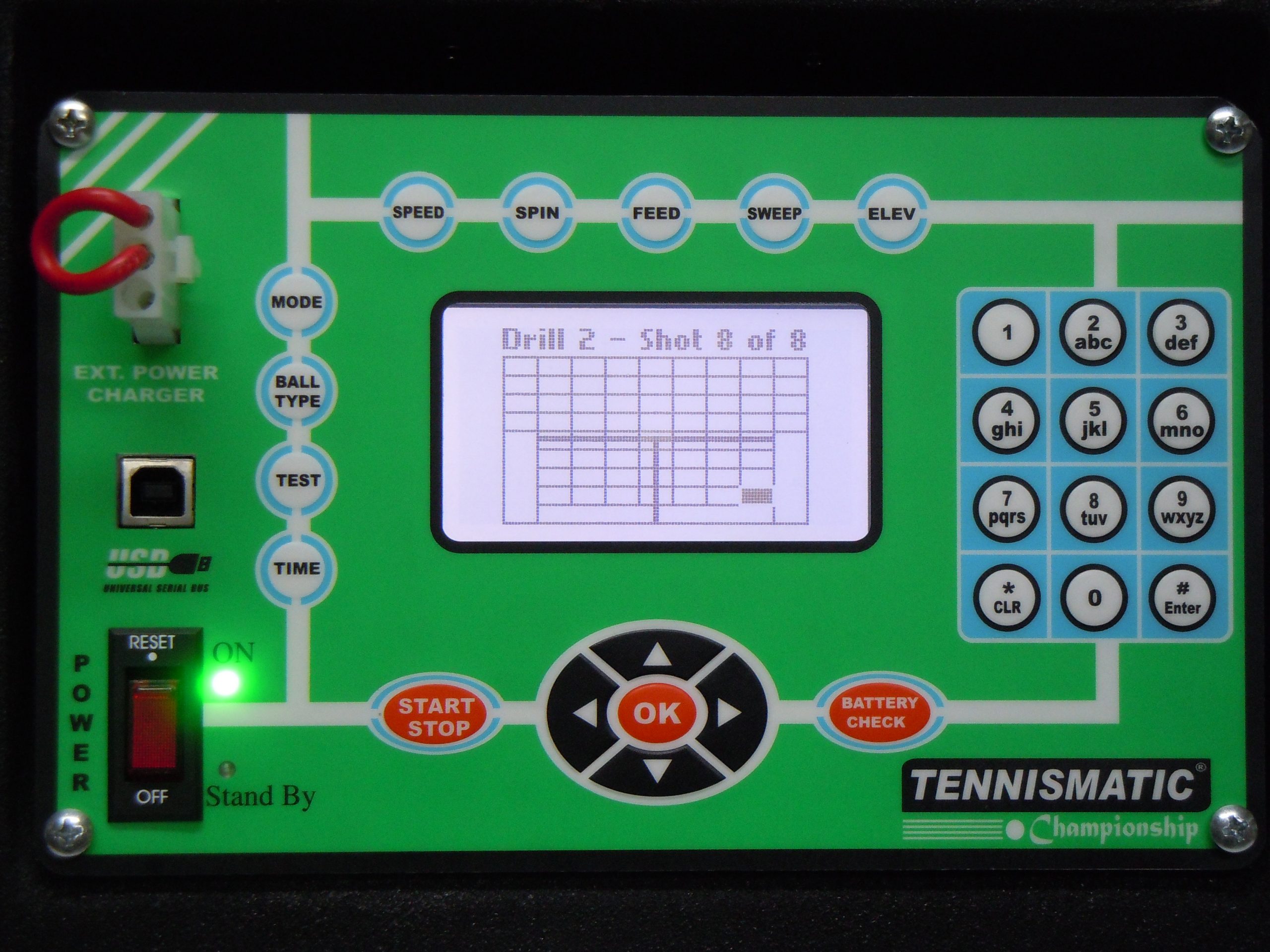

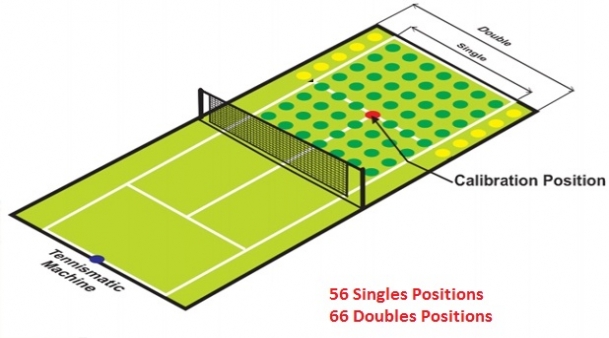

There are 24 factory-set drills that you can just call up, review on the LCD screen then select to play. Each drill may contain up to 16 shots rally, and each shot can be delivered to any one position out from the 56 court positions for single court, and 66 court positions for Double court. There is an audible sound that will signal at the end of each rally, then the rally repeats.
Standard Drills
The Standard drills are programmed to play heavy top spin shots, heavy back spin shots, flat shots and lob/volley shots. With 66 different locations for the Flat, Slice and Top Spin Shots and 57 shots for the volley/lob you will have a wide selection of shot combinations.

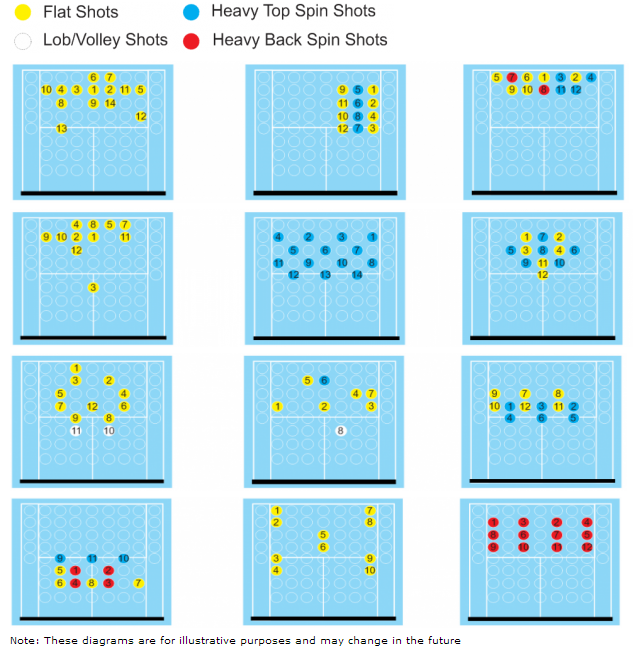

Below are some examples of the types of shots that would be available for the standard drills.
The standard drills on the T202, T203 can have up to 16 shots per drill and has a combination of different shots to enhance your tennis experience.
Custom Set Drills for model T203

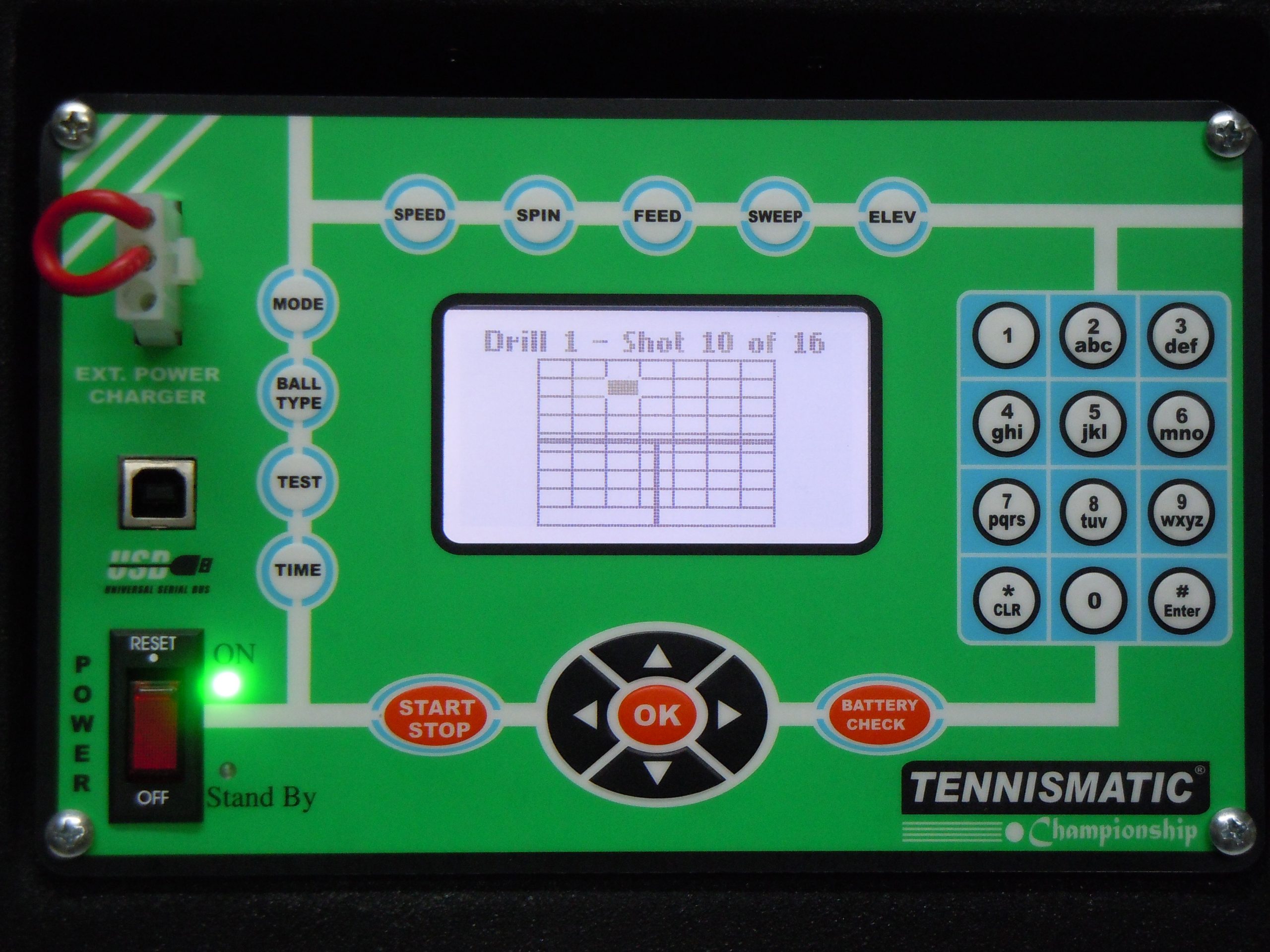

If the standard drills are not enough, we have provided you with another 24 memory slots for you to create your own drills. Use the wireless remote or the control panel to move the cursor to the desired court position on the simulated LCD screen, select, and repeat the process for up to 16 positions, and the rest will be done by the built-in computer software.
Upgrades
All our lower models can easily be upgraded to higher models to suit your changing needs.
Warranty
Our ball machines come with 2 years factory warranty on parts and labour (except for batteries) to the original purchaser.
T200 Series Comparision Chart: –
| Model | T201 | T202 | T203 | |
| Features | ||||
| Speed | 20-110km/h | 20-110km/h | 20-110km/h | |
| Spin | Top/Back Spin | Top/Back Spin | Top/Back Spin | |
| Ball Feed Interval | 2-15 Seconds | 2-15 Seconds | 2-15 Seconds | |
| Elevation | Electronic | Electronic | Electronic | |
| Single/Double Court | Yes | Yes | Yes | |
| Ball Capacity | 300 | 300 | 300 | |
| Ball De-jammer | Yes | Yes | Yes | |
| Ball Hopper Sand Filter | Yes | Yes | Yes | |
| Propulsion | Wheels | Wheels | Wheels | |
| Remote | Navigational | Navigational | Navigational | |
| Battery Level Indicator | Yes | Yes | Yes | |
| Favorite Memory | 24 Locations | 24 Locations | 24 Locations | |
| Factory Set Drill | No | 24 factory-set drills, each drill can be up to 16 shots | 24 factory-set drills, each drill can be up to 16 shots | |
| Custom Set Drill | No | No | 24 custom drills. Each drill can be up to 16 shots. | |
| Single /Double Court Selection | Yes | Yes | Yes | |
| Single/Double Court Drill Location | 56 For Single
64 For Double |
56 For Single
64 For Double |
||
| Horizontal Oscillation | ||||
| Smooth Random | Yes | Yes | Yes | |

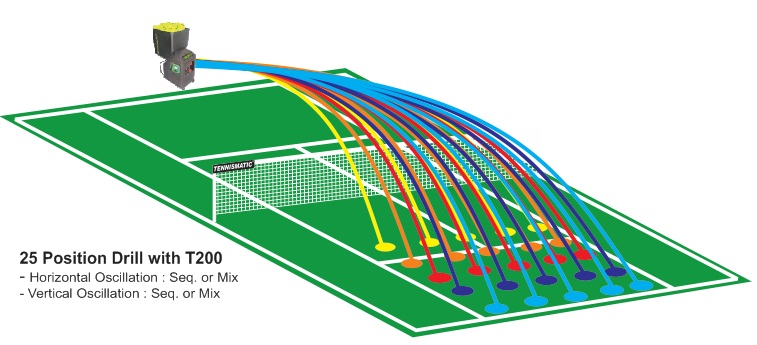

| Programmable Sequence 5 Positions | 5 Horizontal Oscillation positions. combination of vertical & horizontal gives 25 court positions | 5 Horizontal Oscillation positions. Combination of vertical & horizontal gives 25 court positions | 5 Horizontal Oscillation positions. Combination of vertical & horizontal gives 25 court positions | |
| Programmable Mix
5 Positions |
Yes | Yes | Yes | |

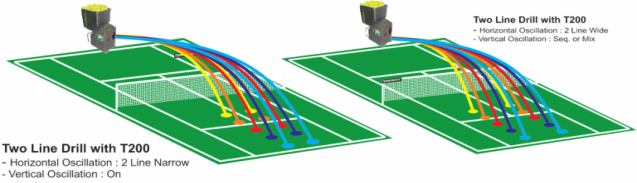

| 2 Line Drill
Narrow/Wide |
Yes |
Yes |
Yes | |

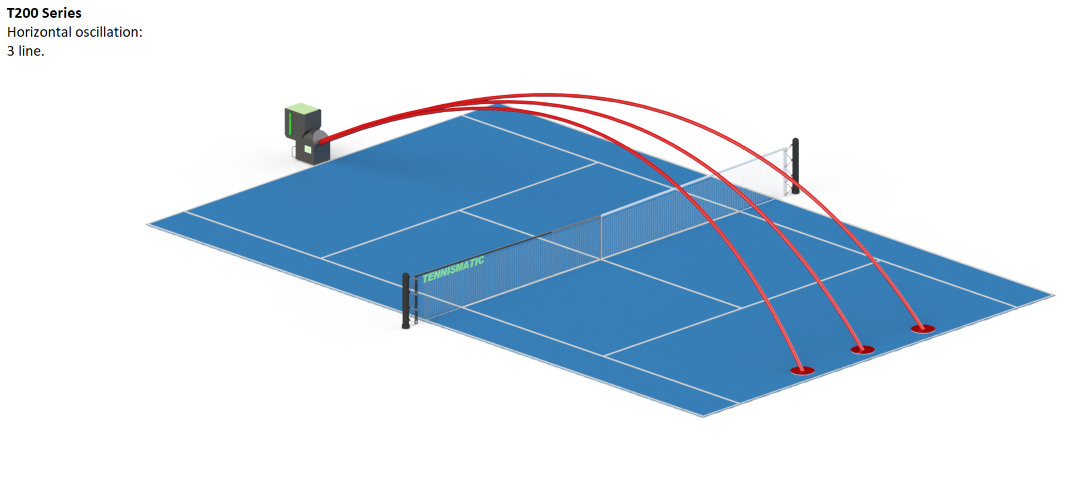

| 3 Line Drill | Yes | Yes | Yes | |
| Vertical Oscillation | ||||
| Programmable Sequence with 5 Positions | 5 Vertical Oscillation positions, with automatic speed adjustment. combination of vertical & horizontal gives 25 court positions | 5 Vertical Oscillation positions, with automatic speed adjustment. combination of vertical & horizontal gives 25 court positions
|
5 Vertical Oscillation positions, with automatic speed adjustment. combination of vertical & horizontal gives 25 court positions
|
|
| Programmable Mix | Yes | Yes | Yes | |
| Stand-By Mode Memory | Yes | Yes | Yes | |
| Ball Type Selection | New/Ave/Old | New/Ave/Old | New/Ave/Old | |
| LCD Display with backlight | Auto, Off, On | Auto, Off, On | Auto, Off, On | |
| Control Panel | State -Of-The -Art touch buttons control panel | State -Of-The -Art touch buttons control panel | State -Of-The -Art touch buttons control panel | |
| Real Time Clock
For time management |
Yes | Yes | Yes | |
| Password Protection | Yes | Yes | Yes | |
| Power Option | DC, AC or AC/DC | DC, AC or AC/DC | DC, AC or AC/DC | |
| Internal Battery Incl. | Yes | Yes | Yes | |
| Internal Battery playing time | 2-4 Hours | 2-4 Hours | 2-4 Hours | |
|
Battery Charger Incl. |
Yes
(3A Automatic Battery Charger) 4-5 hours Charging Time |
Yes
(3A Automatic Battery Charger) 4-5 hours Charging Time |
Yes
(3A Automatic Battery Charger) 4-5 hours Charging Time |
|
| External Heavy Duty Battery | Optional
(up to additional 6 hours) |
Optional
(up to additional 6 hours) |
Optional
(up to additional 6 hours) |
|
| External Heavy Duty Battery Smart Charger | Optional | Optional | Optional | |
| Weight KG | 22.5 – 23 | 22.5 – 23 | 22.5 – 23 |
Older version machines can go up to 140km/ph. With the latest machines is approx. 110km/ph. Machines with curve wheels will deliver the balls in the court area more accurately.
DIMENSIONS CM:
PLAYING POSITION: 68 L x 36 W x 83 H
STORAGE POSITION: 52 L x 42 W x 65 H
WITHOUT THE HOPPER: 47 L X 36 W X 55 H
Packaging size= 1 carton, 59x 47 x 70cm
T200 Price List – Prices in AUD
| T201 Models
DC Model $3799.00 ex. GST $4,179.34.00 incl. GST
AC/DC Model $4147.00 ex. GST $4,561.70.00 incl. GST |
T202 Models
DC Model $4,150.00 ex GST $4,565 incl. GST
AC/DC Model $4446.20 ex. GST $4,890.82 incl. GST
|
T203 Models
DC Model $4,548.8500 ex GST $5,003.74 incl. GST
AC/DC Model $4896.10 ex. GST $5,385.71 incl. GST |
Ex. GST Prices apply to purchases export outside Australia.
Incl. GST Prices apply to Customers within Australia
(DC= Battery), (AC = Mains), (AC/DC= Battery & Mains)
Please Click here for Order information
 For best performance, we recommend you use the Tennismatic pressusreless tennis balls Pressureless Tennis Balls with ball machines. |
